EN: Hello Again! In this section, I will talk about how I modified the Aerosoft Airbus A320 MCDU to fit it into my project. First things first, let yourself introduce to the Aerosoft Airbus X Connect. This guy is the responsible for being a interface between the simulator and the web browser (ok, maybe you know it already). Tip: to work well, you need to first open the simulator, choose your Airbus, and after the plane is on the ground, you will open the Aerosoft Airbus X Connect.

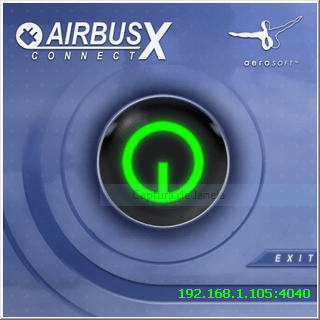

In this pic you can see that the interface is pretty simple: just an exit button and a green power indicator, that shows if the software is connect to the simulator or not (in case of trouble, it appears in red). The other information that you can see is the IP address of the machine, followed by a port (4040). If you open a web browser and put this IP address followed by the port, you will see a page with some telematics information about the airplane. In the end of this page, you can see a link called MCDU. Cliking on it, you will be redirect to the page bellow.

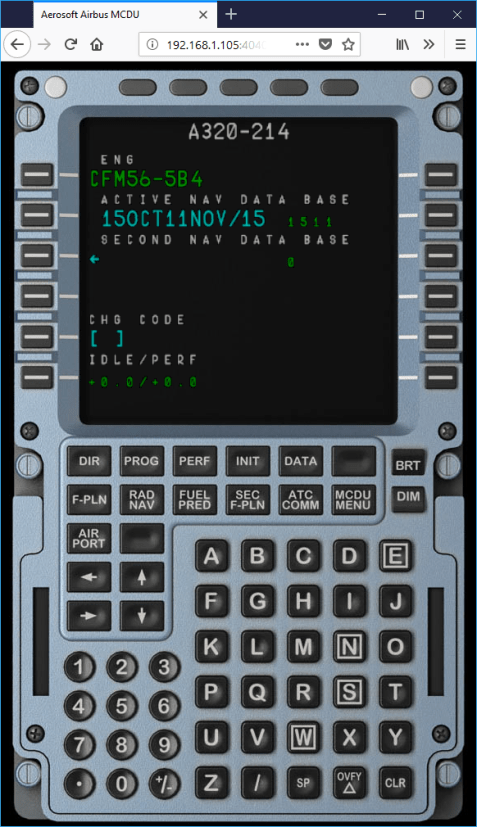

And now the magic happens. First, I tried to identify where the MCDU screen is rendered, and bingo, it’s just a PNG image that is reloaded by a javascript code. I admit that in a first moment, I tried to recreate the method of reloading the image, but with no success. So, after some hours of thinking, I just realized that i could use the original code, with some adjustment. The first thing to do was remove the background image, so, I removed this part:
| <div id="mcdu_background"> | |
| <img src="MCDU_main_data/mcdu_bg.jpg" usemap="#kb_map"> | |
| <map name="kb_map"> | |
| <area shape="rect" coords="22,124,62,152" onclick="parent.btn('/MCDU_KB_00')"> <!-- LSK 1--> | |
| <area shape="rect" coords="22,174,62,202" onclick="parent.btn('/MCDU_KB_01')"> <!-- LSK 2--> | |
| <area shape="rect" coords="22,223,62,251" onclick="parent.btn('/MCDU_KB_02')"> <!-- LSK 3--> | |
| <area shape="rect" coords="22,273,62,301" onclick="parent.btn('/MCDU_KB_03')"> <!-- LSK 4--> | |
| <area shape="rect" coords="22,322,62,350" onclick="parent.btn('/MCDU_KB_04')"> <!-- LSK 5--> | |
| <area shape="rect" coords="22,372,62,400" onclick="parent.btn('/MCDU_KB_05')"> <!-- LSK 6--> | |
| <area shape="rect" coords="515,124,555,152" onclick="parent.btn('/MCDU_KB_06')"> <!-- RSK 1--> | |
| <area shape="rect" coords="515,174,555,202" onclick="parent.btn('/MCDU_KB_07')"> <!-- RSK 2--> | |
| <area shape="rect" coords="515,223,555,251" onclick="parent.btn('/MCDU_KB_08')"> <!-- RSK 3--> | |
| <area shape="rect" coords="515,273,555,301" onclick="parent.btn('/MCDU_KB_09')"> <!-- RSK 4--> | |
| <area shape="rect" coords="515,322,555,350" onclick="parent.btn('/MCDU_KB_10')"> <!-- RSK 5--> | |
| <area shape="rect" coords="515,372,555,400" onclick="parent.btn('/MCDU_KB_11')"> <!-- RSK 6--> | |
| <area shape="rect" coords="79,470,132,506" onclick="parent.btn('/MCDU_KB_12')"> <!-- FN DIR--> | |
| <area shape="rect" coords="144,470,197,506" onclick="parent.btn('/MCDU_KB_13')"> <!-- FN PRG--> | |
| <area shape="rect" coords="208,470,261,506" onclick="parent.btn('/MCDU_KB_20')"> <!-- FN PRF--> | |
| <area shape="rect" coords="273,470,326,506" onclick="parent.btn('/MCDU_KB_21')"> <!-- FN INI--> | |
| <area shape="rect" coords="337,470,390,506" onclick="parent.btn('/MCDU_KB_22')"> <!-- FN DAT--> | |
| <area shape="rect" coords="79,517,132,553" onclick="parent.btn('/MCDU_KB_14')"> <!-- FN FPLN--> | |
| <area shape="rect" coords="144,517,197,553" onclick="parent.btn('/MCDU_KB_15')"> <!-- FN RADN--> | |
| <area shape="rect" coords="208,517,261,553" onclick="parent.btn('/MCDU_KB_23')"> <!-- FN FUEL--> | |
| <area shape="rect" coords="273,517,326,553" onclick="parent.btn('/MCDU_KB_24')"> <!-- FN SECF--> | |
| <area shape="rect" coords="402,517,455,553" onclick="parent.btn('/MCDU_KB_26')"> <!-- FN MENU--> | |
| <area shape="rect" coords="79,565,132,601" onclick="parent.btn('/MCDU_KB_16')"> <!-- FN ARPT--> | |
| <area shape="rect" coords="79,612,132,648" onclick="parent.btn('/MCDU_KB_25')"> <!-- AR L--> | |
| <area shape="rect" coords="144,612,197,648" onclick="parent.btn('/MCDU_KB_17')"> <!-- AR U--> | |
| <area shape="rect" coords="79,659,132,695" onclick="parent.btn('/MCDU_KB_18')"> <!-- AR R--> | |
| <area shape="rect" coords="144,659,197,695" onclick="parent.btn('/MCDU_KB_19')"> <!-- AR D--> | |
| <area shape="rect" coords="75,720,114,759" onclick="parent.btn('/MCDU_KB_28')"> <!-- AL 1--> | |
| <area shape="rect" coords="127,720,166,759" onclick="parent.btn('/MCDU_KB_29')"> <!-- AL 2--> | |
| <area shape="rect" coords="179,720,218,759" onclick="parent.btn('/MCDU_KB_30')"> <!-- AL 3--> | |
| <area shape="rect" coords="75,768,114,807" onclick="parent.btn('/MCDU_KB_31')"> <!-- AL 4--> | |
| <area shape="rect" coords="127,768,166,807" onclick="parent.btn('/MCDU_KB_32')"> <!-- AL 5--> | |
| <area shape="rect" coords="179,768,218,807" onclick="parent.btn('/MCDU_KB_33')"> <!-- AL 6--> | |
| <area shape="rect" coords="75,815,114,854" onclick="parent.btn('/MCDU_KB_34')"> <!-- AL 7--> | |
| <area shape="rect" coords="127,815,166,854" onclick="parent.btn('/MCDU_KB_35')"> <!-- AL 8--> | |
| <area shape="rect" coords="179,815,218,854" onclick="parent.btn('/MCDU_KB_36')"> <!-- AL 9--> | |
| <area shape="rect" coords="75,863,114,902" onclick="parent.btn('/MCDU_KB_37')"> <!-- AL .--> | |
| <area shape="rect" coords="127,863,166,902" onclick="parent.btn('/MCDU_KB_27')"> <!-- AL 0--> | |
| <area shape="rect" coords="179,863,218,902" onclick="parent.btn('/MCDU_KB_65')"> <!-- AL +--> | |
| <area shape="rect" coords="235,584,275,624" onclick="parent.btn('/MCDU_KB_39')"> <!-- AL A--> | |
| <area shape="rect" coords="291,584,331,624" onclick="parent.btn('/MCDU_KB_40')"> <!-- AL B--> | |
| <area shape="rect" coords="348,584,388,624" onclick="parent.btn('/MCDU_KB_41')"> <!-- AL C--> | |
| <area shape="rect" coords="404,584,444,624" onclick="parent.btn('/MCDU_KB_42')"> <!-- AL D--> | |
| <area shape="rect" coords="460,584,500,624" onclick="parent.btn('/MCDU_KB_43')"> <!-- AL E--> | |
| <area shape="rect" coords="235,639,275,679" onclick="parent.btn('/MCDU_KB_44')"> <!-- AL F--> | |
| <area shape="rect" coords="291,639,331,679" onclick="parent.btn('/MCDU_KB_45')"> <!-- AL G--> | |
| <area shape="rect" coords="348,639,388,679" onclick="parent.btn('/MCDU_KB_46')"> <!-- AL H--> | |
| <area shape="rect" coords="404,639,444,679" onclick="parent.btn('/MCDU_KB_47')"> <!-- AL I--> | |
| <area shape="rect" coords="460,639,500,679" onclick="parent.btn('/MCDU_KB_48')"> <!-- AL J--> | |
| <area shape="rect" coords="235,695,275,735" onclick="parent.btn('/MCDU_KB_49')"> <!-- AL K--> | |
| <area shape="rect" coords="291,695,331,735" onclick="parent.btn('/MCDU_KB_50')"> <!-- AL L--> | |
| <area shape="rect" coords="348,695,388,735" onclick="parent.btn('/MCDU_KB_51')"> <!-- AL M--> | |
| <area shape="rect" coords="404,695,444,735" onclick="parent.btn('/MCDU_KB_52')"> <!-- AL N--> | |
| <area shape="rect" coords="460,695,500,735" onclick="parent.btn('/MCDU_KB_53')"> <!-- AL O--> | |
| <area shape="rect" coords="235,750,275,790" onclick="parent.btn('/MCDU_KB_54')"> <!-- AL P--> | |
| <area shape="rect" coords="291,750,331,790" onclick="parent.btn('/MCDU_KB_55')"> <!-- AL Q--> | |
| <area shape="rect" coords="348,750,388,790" onclick="parent.btn('/MCDU_KB_56')"> <!-- AL R--> | |
| <area shape="rect" coords="404,750,444,790" onclick="parent.btn('/MCDU_KB_57')"> <!-- AL S--> | |
| <area shape="rect" coords="460,750,500,790" onclick="parent.btn('/MCDU_KB_58')"> <!-- AL T--> | |
| <area shape="rect" coords="235,806,275,846" onclick="parent.btn('/MCDU_KB_59')"> <!-- AL U--> | |
| <area shape="rect" coords="291,806,331,846" onclick="parent.btn('/MCDU_KB_60')"> <!-- AL V--> | |
| <area shape="rect" coords="348,806,388,846" onclick="parent.btn('/MCDU_KB_61')"> <!-- AL W--> | |
| <area shape="rect" coords="404,806,444,846" onclick="parent.btn('/MCDU_KB_62')"> <!-- AL X--> | |
| <area shape="rect" coords="460,806,500,846" onclick="parent.btn('/MCDU_KB_63')"> <!-- AL Y--> | |
| <area shape="rect" coords="235,861,275,901" onclick="parent.btn('/MCDU_KB_64')"> <!-- AL Z--> | |
| <area shape="rect" coords="291,861,331,901" onclick="parent.btn('/MCDU_KB_38')"> <!-- AL /--> | |
| <area shape="rect" coords="348,861,388,901" onclick="parent.btn('/MCDU_KB_66')"> <!-- AL SP--> | |
| <area shape="rect" coords="404,861,444,901" onclick="parent.btn('/MCDU_KB_67')"> <!-- AL OVFY--> | |
| <area shape="rect" coords="460,861,500,901" onclick="parent.btn('/MCDU_KB_68')"> <!-- AL CLR--> | |
| </map> | |
| </div> |
And why so much code removed? Because the background image was mounted in a HTML div, that includes all the mappings for the keys. This mappings I will use in the future, but for now I can just remove them. Almost done. The only thing I needed to change was the image size of the MCDU, to fit on my LCD screen. As I said before, there are javascripts to reload the image, and there are references in those codes to the image size. So, I changed the image size on every line that I found. The original lines was:
| canvasObj.drawImage(imgObj,19,16,273,250,0,0,370,364); | |
| var imd = canvasObj.getImageData(0, 0, 370,364); | |
| var numPixels = 370 * 364 * 4; | |
| #mcdu_display { position:absolute; left:103px; top: 72px; width: 370px; height: 364px; } |
Other thing I changed were the top and left margins of the image (#mcdu_display { position:absolute; left:103px; top: 72px; width: 370px; height: 364px; }), just to let some space between the screen and the image.
All done! For who want to see the entire code, i submitted it to my GitHub. There I posted the original code and my changes. Thanks for joing me in this project. See you soon! 😉
PT-BR: Olá novamente! Nesta seção, vou falar sobre como modifiquei o Airbus A320 MCDU da Aerosoft para ajustá-lo ao meu projeto. Primeiro, deixe-se apresentar ao Aerosoft Airbus X Connect. Esse cara é o responsável por ser uma interface entre o simulador e o navegador (ok, talvez você já saiba disso). Dica: para funcionar bem, você precisa primeiro abrir o simulador, escolher o seu Airbus e, depois que o avião estiver no solo, você abrirá o Aerosoft Airbus X Connect.
Nesta foto você pode ver que a interface é bastante simples: apenas um botão de saída e um indicador verde de energia , que mostra se o software está conectado ao simulador ou não(em caso de problemas, ele aparece em vermelho). A outra informação que você pode ver é o endereço IP da máquina, seguido por uma porta (4040). Se você abrir um navegador da Web e colocar esse endereço IP seguido da porta, verá uma página com algumas informações de telemática sobre o avião. No final desta página, você pode ver um link chamado MCDU. Clicando nele, você será redirecionado para a página abaixo.
E agora a mágica acontece. Primeiro, tentei identificar onde a tela do MCDU é renderizada, e bingo, é apenas uma imagem PNG que é recarregada por um código javascript. Admito que, num primeiro momento, tentei recriar o método de recarregar a imagem, mas sem sucesso. Então, depois de algumas horas de raciocínio, acabei de perceber que poderia usar o código original, com algum ajuste. A primeira coisa a fazer foi remover a imagem de fundo, por isso, removi esta parte:
| <div id="mcdu_background"> | |
| <img src="MCDU_main_data/mcdu_bg.jpg" usemap="#kb_map"> | |
| <map name="kb_map"> | |
| <area shape="rect" coords="22,124,62,152" onclick="parent.btn('/MCDU_KB_00')"> <!-- LSK 1--> | |
| <area shape="rect" coords="22,174,62,202" onclick="parent.btn('/MCDU_KB_01')"> <!-- LSK 2--> | |
| <area shape="rect" coords="22,223,62,251" onclick="parent.btn('/MCDU_KB_02')"> <!-- LSK 3--> | |
| <area shape="rect" coords="22,273,62,301" onclick="parent.btn('/MCDU_KB_03')"> <!-- LSK 4--> | |
| <area shape="rect" coords="22,322,62,350" onclick="parent.btn('/MCDU_KB_04')"> <!-- LSK 5--> | |
| <area shape="rect" coords="22,372,62,400" onclick="parent.btn('/MCDU_KB_05')"> <!-- LSK 6--> | |
| <area shape="rect" coords="515,124,555,152" onclick="parent.btn('/MCDU_KB_06')"> <!-- RSK 1--> | |
| <area shape="rect" coords="515,174,555,202" onclick="parent.btn('/MCDU_KB_07')"> <!-- RSK 2--> | |
| <area shape="rect" coords="515,223,555,251" onclick="parent.btn('/MCDU_KB_08')"> <!-- RSK 3--> | |
| <area shape="rect" coords="515,273,555,301" onclick="parent.btn('/MCDU_KB_09')"> <!-- RSK 4--> | |
| <area shape="rect" coords="515,322,555,350" onclick="parent.btn('/MCDU_KB_10')"> <!-- RSK 5--> | |
| <area shape="rect" coords="515,372,555,400" onclick="parent.btn('/MCDU_KB_11')"> <!-- RSK 6--> | |
| <area shape="rect" coords="79,470,132,506" onclick="parent.btn('/MCDU_KB_12')"> <!-- FN DIR--> | |
| <area shape="rect" coords="144,470,197,506" onclick="parent.btn('/MCDU_KB_13')"> <!-- FN PRG--> | |
| <area shape="rect" coords="208,470,261,506" onclick="parent.btn('/MCDU_KB_20')"> <!-- FN PRF--> | |
| <area shape="rect" coords="273,470,326,506" onclick="parent.btn('/MCDU_KB_21')"> <!-- FN INI--> | |
| <area shape="rect" coords="337,470,390,506" onclick="parent.btn('/MCDU_KB_22')"> <!-- FN DAT--> | |
| <area shape="rect" coords="79,517,132,553" onclick="parent.btn('/MCDU_KB_14')"> <!-- FN FPLN--> | |
| <area shape="rect" coords="144,517,197,553" onclick="parent.btn('/MCDU_KB_15')"> <!-- FN RADN--> | |
| <area shape="rect" coords="208,517,261,553" onclick="parent.btn('/MCDU_KB_23')"> <!-- FN FUEL--> | |
| <area shape="rect" coords="273,517,326,553" onclick="parent.btn('/MCDU_KB_24')"> <!-- FN SECF--> | |
| <area shape="rect" coords="402,517,455,553" onclick="parent.btn('/MCDU_KB_26')"> <!-- FN MENU--> | |
| <area shape="rect" coords="79,565,132,601" onclick="parent.btn('/MCDU_KB_16')"> <!-- FN ARPT--> | |
| <area shape="rect" coords="79,612,132,648" onclick="parent.btn('/MCDU_KB_25')"> <!-- AR L--> | |
| <area shape="rect" coords="144,612,197,648" onclick="parent.btn('/MCDU_KB_17')"> <!-- AR U--> | |
| <area shape="rect" coords="79,659,132,695" onclick="parent.btn('/MCDU_KB_18')"> <!-- AR R--> | |
| <area shape="rect" coords="144,659,197,695" onclick="parent.btn('/MCDU_KB_19')"> <!-- AR D--> | |
| <area shape="rect" coords="75,720,114,759" onclick="parent.btn('/MCDU_KB_28')"> <!-- AL 1--> | |
| <area shape="rect" coords="127,720,166,759" onclick="parent.btn('/MCDU_KB_29')"> <!-- AL 2--> | |
| <area shape="rect" coords="179,720,218,759" onclick="parent.btn('/MCDU_KB_30')"> <!-- AL 3--> | |
| <area shape="rect" coords="75,768,114,807" onclick="parent.btn('/MCDU_KB_31')"> <!-- AL 4--> | |
| <area shape="rect" coords="127,768,166,807" onclick="parent.btn('/MCDU_KB_32')"> <!-- AL 5--> | |
| <area shape="rect" coords="179,768,218,807" onclick="parent.btn('/MCDU_KB_33')"> <!-- AL 6--> | |
| <area shape="rect" coords="75,815,114,854" onclick="parent.btn('/MCDU_KB_34')"> <!-- AL 7--> | |
| <area shape="rect" coords="127,815,166,854" onclick="parent.btn('/MCDU_KB_35')"> <!-- AL 8--> | |
| <area shape="rect" coords="179,815,218,854" onclick="parent.btn('/MCDU_KB_36')"> <!-- AL 9--> | |
| <area shape="rect" coords="75,863,114,902" onclick="parent.btn('/MCDU_KB_37')"> <!-- AL .--> | |
| <area shape="rect" coords="127,863,166,902" onclick="parent.btn('/MCDU_KB_27')"> <!-- AL 0--> | |
| <area shape="rect" coords="179,863,218,902" onclick="parent.btn('/MCDU_KB_65')"> <!-- AL +--> | |
| <area shape="rect" coords="235,584,275,624" onclick="parent.btn('/MCDU_KB_39')"> <!-- AL A--> | |
| <area shape="rect" coords="291,584,331,624" onclick="parent.btn('/MCDU_KB_40')"> <!-- AL B--> | |
| <area shape="rect" coords="348,584,388,624" onclick="parent.btn('/MCDU_KB_41')"> <!-- AL C--> | |
| <area shape="rect" coords="404,584,444,624" onclick="parent.btn('/MCDU_KB_42')"> <!-- AL D--> | |
| <area shape="rect" coords="460,584,500,624" onclick="parent.btn('/MCDU_KB_43')"> <!-- AL E--> | |
| <area shape="rect" coords="235,639,275,679" onclick="parent.btn('/MCDU_KB_44')"> <!-- AL F--> | |
| <area shape="rect" coords="291,639,331,679" onclick="parent.btn('/MCDU_KB_45')"> <!-- AL G--> | |
| <area shape="rect" coords="348,639,388,679" onclick="parent.btn('/MCDU_KB_46')"> <!-- AL H--> | |
| <area shape="rect" coords="404,639,444,679" onclick="parent.btn('/MCDU_KB_47')"> <!-- AL I--> | |
| <area shape="rect" coords="460,639,500,679" onclick="parent.btn('/MCDU_KB_48')"> <!-- AL J--> | |
| <area shape="rect" coords="235,695,275,735" onclick="parent.btn('/MCDU_KB_49')"> <!-- AL K--> | |
| <area shape="rect" coords="291,695,331,735" onclick="parent.btn('/MCDU_KB_50')"> <!-- AL L--> | |
| <area shape="rect" coords="348,695,388,735" onclick="parent.btn('/MCDU_KB_51')"> <!-- AL M--> | |
| <area shape="rect" coords="404,695,444,735" onclick="parent.btn('/MCDU_KB_52')"> <!-- AL N--> | |
| <area shape="rect" coords="460,695,500,735" onclick="parent.btn('/MCDU_KB_53')"> <!-- AL O--> | |
| <area shape="rect" coords="235,750,275,790" onclick="parent.btn('/MCDU_KB_54')"> <!-- AL P--> | |
| <area shape="rect" coords="291,750,331,790" onclick="parent.btn('/MCDU_KB_55')"> <!-- AL Q--> | |
| <area shape="rect" coords="348,750,388,790" onclick="parent.btn('/MCDU_KB_56')"> <!-- AL R--> | |
| <area shape="rect" coords="404,750,444,790" onclick="parent.btn('/MCDU_KB_57')"> <!-- AL S--> | |
| <area shape="rect" coords="460,750,500,790" onclick="parent.btn('/MCDU_KB_58')"> <!-- AL T--> | |
| <area shape="rect" coords="235,806,275,846" onclick="parent.btn('/MCDU_KB_59')"> <!-- AL U--> | |
| <area shape="rect" coords="291,806,331,846" onclick="parent.btn('/MCDU_KB_60')"> <!-- AL V--> | |
| <area shape="rect" coords="348,806,388,846" onclick="parent.btn('/MCDU_KB_61')"> <!-- AL W--> | |
| <area shape="rect" coords="404,806,444,846" onclick="parent.btn('/MCDU_KB_62')"> <!-- AL X--> | |
| <area shape="rect" coords="460,806,500,846" onclick="parent.btn('/MCDU_KB_63')"> <!-- AL Y--> | |
| <area shape="rect" coords="235,861,275,901" onclick="parent.btn('/MCDU_KB_64')"> <!-- AL Z--> | |
| <area shape="rect" coords="291,861,331,901" onclick="parent.btn('/MCDU_KB_38')"> <!-- AL /--> | |
| <area shape="rect" coords="348,861,388,901" onclick="parent.btn('/MCDU_KB_66')"> <!-- AL SP--> | |
| <area shape="rect" coords="404,861,444,901" onclick="parent.btn('/MCDU_KB_67')"> <!-- AL OVFY--> | |
| <area shape="rect" coords="460,861,500,901" onclick="parent.btn('/MCDU_KB_68')"> <!-- AL CLR--> | |
| </map> | |
| </div> |
E por que tanto código foi removido? Porque a imagem de fundo foi montada em um HTML div, que inclui todos os mapeamentos para as teclas. Esses mapeamentos serão usados no futuro, mas, por enquanto, posso apenas removê-los. Quase pronto. A única coisa que eu precisava mudar era o tamanho da imagem do MCDU, para caber na minha tela LCD. Como eu disse antes, há javascripts para recarregar a imagem, e há referências nesses códigos ao tamanho da imagem. Então, mudei o tamanho da imagem em todas as linhas que encontrei. As linhas originais eram:
| canvasObj.drawImage(imgObj,19,16,273,250,0,0,370,364); | |
| var imd = canvasObj.getImageData(0, 0, 370,364); | |
| var numPixels = 370 * 364 * 4; | |
| #mcdu_display { position:absolute; left:103px; top: 72px; width: 370px; height: 364px; } |
Outra coisa que eu mudei foram as margens superior e esquerda da imagem (#mcdu_display { position:absolute; left:103px; top: 72px; width: 370px; height: 364px; }), apenas para deixar algum espaço entre a tela e a imagem.
Tudo feito! Para quem quiser ver o código inteiro, enviei para o meu GitHub. Lá eu postei o código original e minhas alterações. Obrigado por se juntar a mim neste projeto. Te vejo em breve! 😉
